4.1 MP
Resolution
+/- 0.10 mm
3D accuracy
180 FPS
Native frame rate
250+ FPS
Max frame rate
Water and dust resistant.
Engineered for durability, the Versa thrives in tough conditions.
Its IP66-rated design protects against dust and water, making it ideal for both outdoor and industrial applications.
.png)

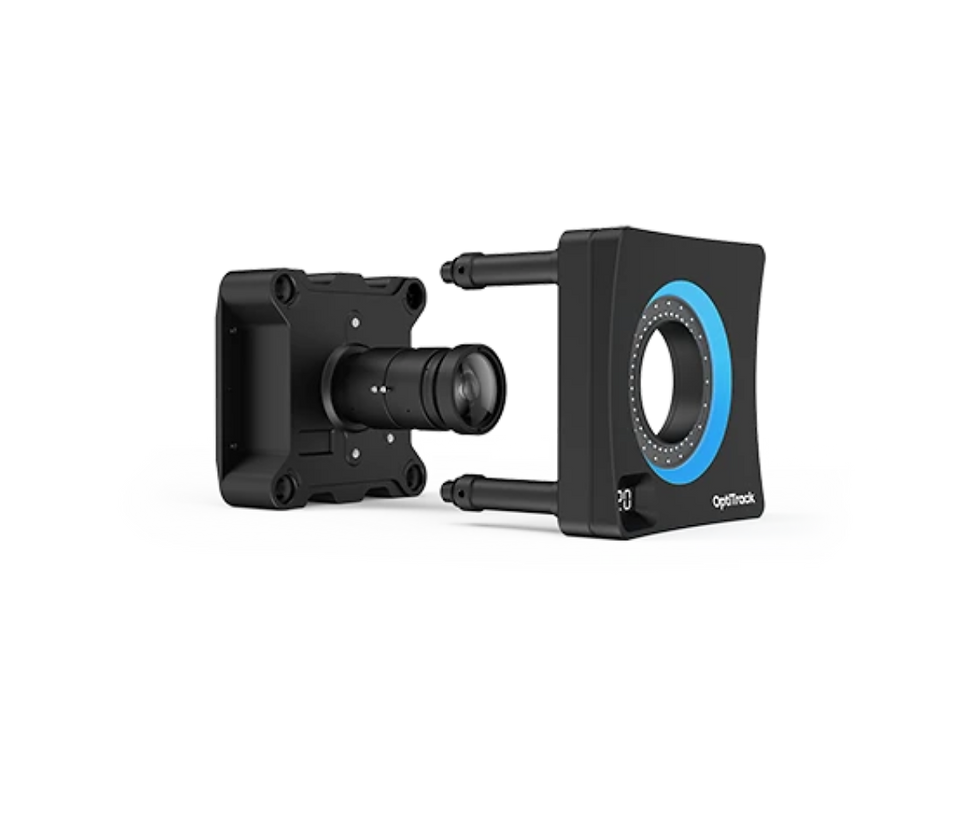

The Versax is built to evolve with you.
Start with the core setup and expand its capabilities by adding the optional ring light as your projects grow.
This flexible design allows you to take on new projects or expand capabilities without replacing the entire system.
Add on more accessories.
Complete your Versa setup with customisable accessories, including multiple lens choices, ring light options, and a protective weather cover to keep water off of your lens.
Build the ideal configuration to maximise performance and durability for any application.
.jpg)
.jpg)
So many mounting options.
The Versax provides flexibility with three mounting options: 1/4-20, M4x0.7, and M5x0.8...
...making it adaptable to a wide range of setups.
On-camera status indicator.
Versax cameras can keep users informed with definable color LED indicator rings surrounding the lens.
Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
.jpg)
.jpg)
Full resolution grayscale reference video.
All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay.
Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
Read About Our Optitrack Projects
Researchers Use Mocap technology to improve accuracy of 3D printed concrete
Loughborough University have recently adopted OptiTrack technology to improve the accuracy of their products
Position Validation of Ground-Based Robots For the School Of Engineering
Motion capture is transforming learning at one of the UK’s leading universities
.jpg)
OEM & computer vision Integration.
Incorporate Versax 41 cameras into OEM tracking or computer vision applications via the free SDK...
...A C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronisation and all 3D data.
.jpg)
Available in three lens configurations.
The standard, W (Wide) model, featuring a wider 65° × 65° field of view for expansive coverage, and the N (Narrow) model, offering a standard 51° × 51° field of view for more focused tracking.
Select the camera that best fits your motion capture volume and application requirements.
Precise imaging.
Enhances motion capture accuracy across large volumes.
This high-resolution capability ensures detailed tracking of fine movements, making it ideal for applications requiring exacting precision.
.jpg)
Mix and match cameras.
Systems can pair Versax cameras with other Primex or Prime Color cameras...
...create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.
Robust yet lightweight body.
Crafted from a combination of aluminium and polycarbonate.
Ensuring durability and portability for various motion capture setups.
.png)
It's more than just cameras.
Versax cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more.
The Versax cameras and Motive enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
.png)
External sync in/out, Genlock, and Time Code.
Synchronize any Prime and Primex cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronisation. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customisation within the timing protocols.
.jpg)
Versax equals precision.
Versax cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met.
We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.
Expert system configuration for any space.
OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes.
Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
