F-scan64 by Tekscan
  • F-scan64 by Tekscan

    The F-Scan64™ is a cord-free in-shoe system with micro-sized, Bluetooth™-enabled electronics allowing for quick, natural gait analysis.



    Similar to the original system, the F-Scan64 2.0 allows for natural gait data collection free from cords and now offers the ability for easy data retrieval when moving out of Bluetooth range. Collected data is always accessible, regardless of how far the subject travels from the computer. F-Scan64 is a cord-free in-shoe system with micro-sized electronics for natural gait analysis ideal for clinical researchers. Quickly set up the system and be ready to collect data in three minutes or less. Get insights into essential gait parameters like pressure and force data, gait timing and Center of Force (CoF) data to immediately identify asymmetries.


    F-Scan64 FEATURES

    • Effortless Set Up: System set-up is 3 minutes or less
    • Data the Way You Want It: Get access to raw data for research calculations and clinical reports for patient education
    • Freedom of Movement: Compact system allows for natural gait collection
    • Versatile Applications: With scan rates up 100 Hz capture data for a variety of dynamic gait activities
    • Objectively Track Progress: Easily compare pre- and post-intervention to monitor outcomes



    F-Scan64 combines Tekscan’s fastest in-shoe system set-up time with visual analysis software equipped with essential gait parameters and reporting features. F-Scan64 helps clinicians and research obtain a basic understanding of gait function and dynamics.


    F-Scan64 combines Tekscan’s fastest in-shoe system set-up time with visual analysis software equipped with essential gait parameters and reporting features. F-Scan64 helps clinicians and research obtain a basic understanding of gait function and dynamics.

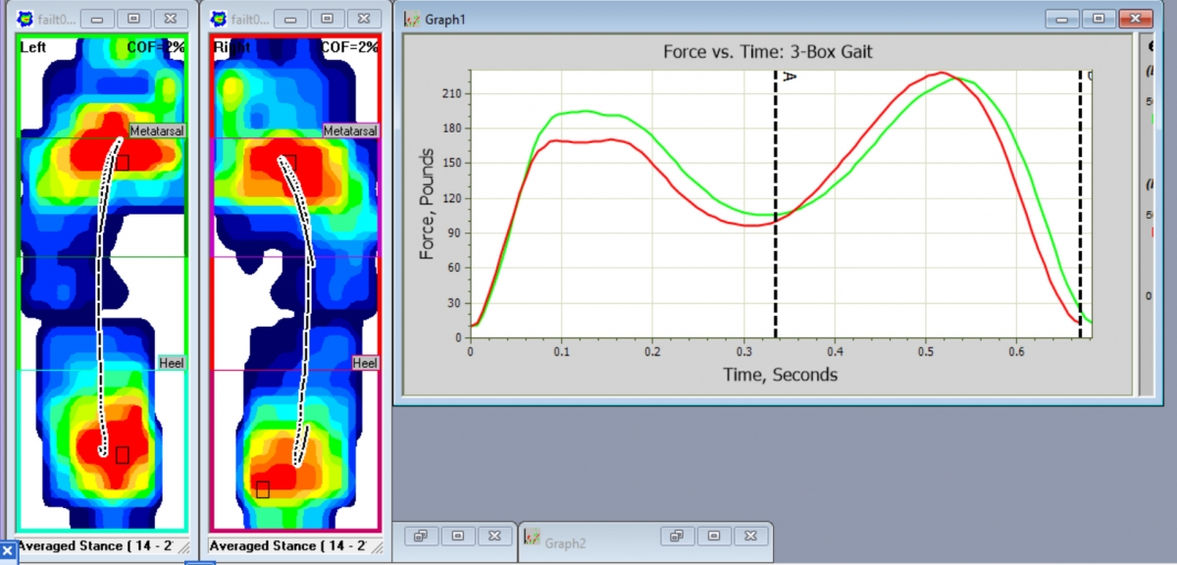

    • Pressure and force data
    • Center of Force
    • Timing Parameters

     - Cadence

     - Step time

     - Stride time

     - Stance time

     - Swing time

    • 3-Box and Peak Pressure Reports
    • Segment the foot for deeper analysis
    • Isolate areas of highest pressure
    • Side-by-side comparison for pre- and post-recordings
    • Patient database
    • ASCII data output



    DOWNLOAD



    • Tech Specs

      SENSORS AND GUIDE SPECIFICATIONS
      Insole size: Up to 12.5 mens (US)

      Thinness: 0.229 mm / 0.009 inch

      Pressure Range: 125 PSI / 862 kPa

      All sensors should last approximately 5-15 trials, depending on the application. (This assumes more vigorous usage for the Sport sensor, such as running, jumping, etc.



      SYSTEMS GUIDE AND SPECIFICATIONS

      Electronics included: 2 x F-Scan64 Cuffs

      Micro-B to -A USB Charging Cables
       2 x Universal Power Supplies
       1 x Bluetooth™ Dongle

      Scan Rates: Up to 100 Hz



      Size 2.26 x 1.43 x 0.63 in (57.4 x 36.3 x 16.0 mm)

      Weight 27g

      Battery Life 90 minutes (useage dependent)



      COMPUTER REQUIREMENTS

      F-Scan64 software requires Windows® 10.
